Tea Cup Carnival Spinning Ride For Sale|China Amusement Park Rides For Sale
Parameter
Seating capacity: 10 persons (each cabin is limited to 2 children, or one adult and one child, please do not overload)
Disc speed: 4 ~ 5 rpm
Working time: 1 ~ 5min
Motor power: 1.1KW, 220V ± 5%, single phase
Swing diameter: φ 3.6 m
area covered: φ 3.6m × 2.5 (H) m (excluding guardrail)

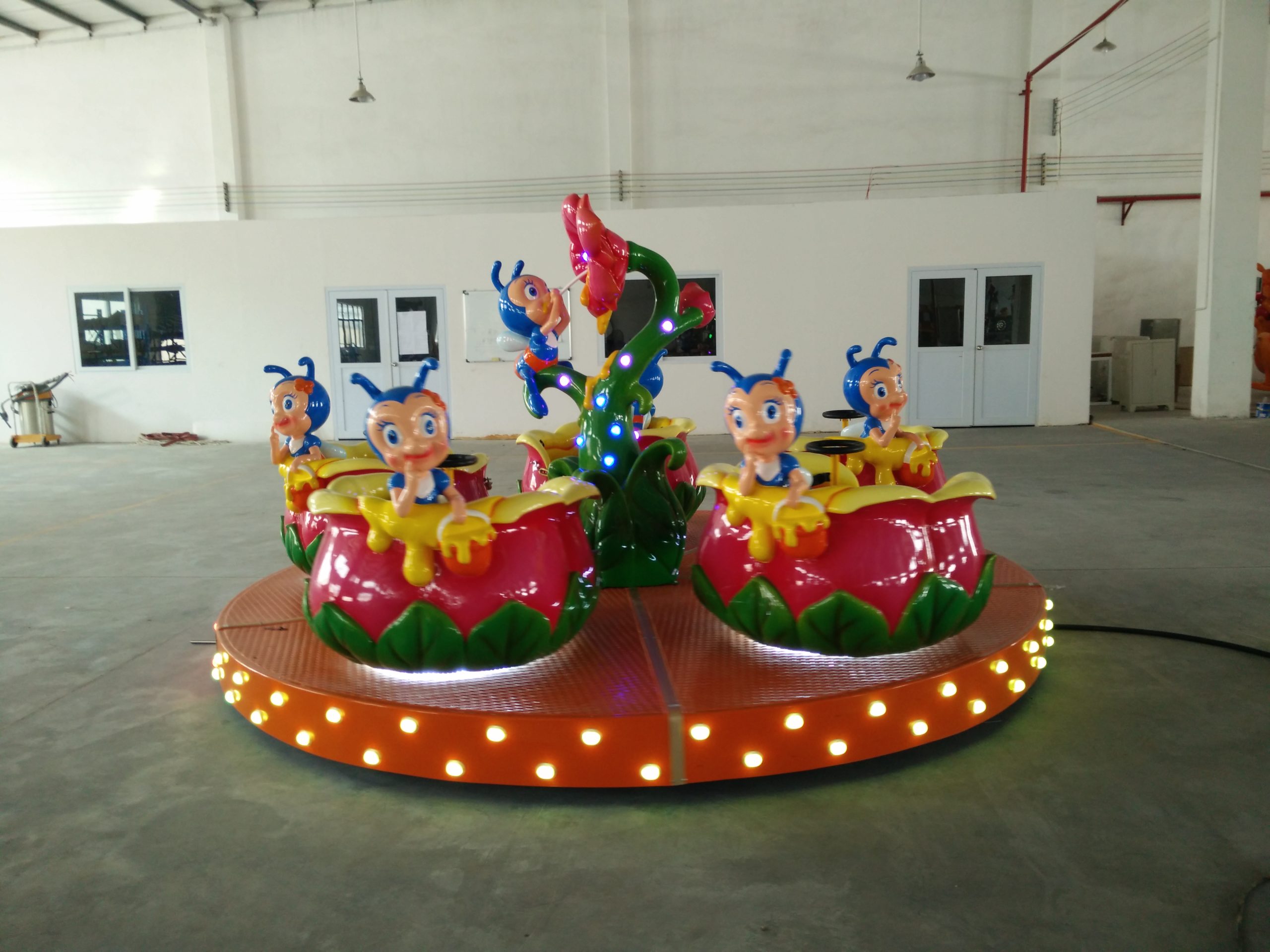

Description
Colorful honeypot is a unique inspection free equipment. It is driven by the three-phase rotating motor of the honeypot and the rotating center of the passenger can.
The motion set of the whole equipment rotates The FRP model is vivid, lifelike and bright. Coupled with pleasant music, it gives passengers a real sense of rotation entertainment.
Relate Products
What are the characteristics of the structure and movement of the tea cup ride?
- The rotating coffee cup ride/ tea cup ride machines is a typical product of the large carousel amusement park rides . The rotation ride machine is equipped with a large turntable, a small turntable and a turntable cup.
- The big turntable is with three small turntables, and each small turntable is with 3 revolving cups. The moveable cup is for players to sit in. In addition to rotating around its own central axis, the cockpit also rotates around the center of the turntable.And each small turntable rotates around the center of the big turntable.
- Visitors sit in the cup and have fun of multiple compound rotations. They can choose the rotation limit according to themselves. The cockpit is manually rotated through the middle hand wheel to obtain a more exciting rotation speed. Each cup can seat four people, which is suitable for families and tourists of different ages to participate.
- The tea cup ride cockpit and decoration are with vivid and beautiful design. It is deeply loved by tourists. The whole rotating cup rides amusement game machine is mainly composed of a large turntable, a small turntable, a rotating cup, a rotating support, a drive system, an operation control system and other spare parts. The structure is shown in Figure 1-2.
2022 Best Tea Cup Ride For Sale|Amusement Park Teacup Ride Supplier|Coffee Cup Carnival Rides Made In China mad hatter tea party

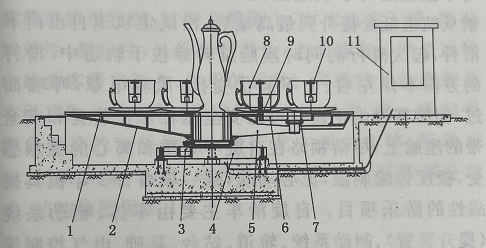

Figure 1-2 Rotating cup
1—Large turntable; 2—Large turntable support frame; 3—Large turntable slewing support and reduction motor;4—Base;
5—Small turntable support beam; 6—Turntable; 7—Slewing support and geared motor;8—rotating cup; 9—rotating support; 10—hand wheel;
11—control operation room
