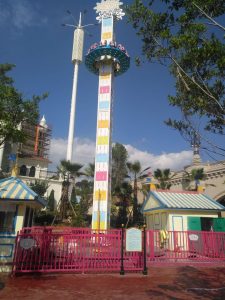

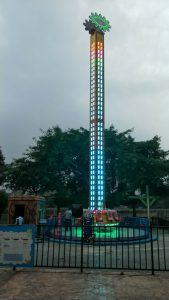

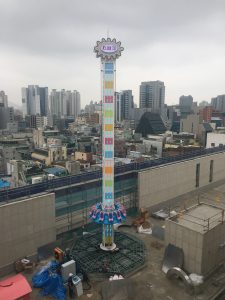

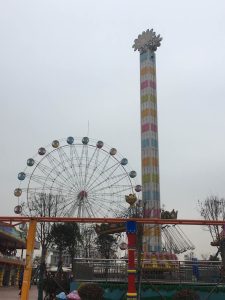

18 Meters Rotating Tower Rides For Sale
Parameter
Capacity: 12 people
Lifting speed: ≤1.2m/s
Operating height: ≤14m
Rated power: 55kW
Covered area: 10m×8m
Power supply: 380V
Equipment height: 18m
Falling speed: ≤4m/s (adjustable)
Rotary diameter: Φ3.2m
Theoretical passenger capacity: 144PPH
The design service life of the whole machine is 15 years
Application range:amusement park、playground、theme park.
Product Description
The rotating tower belongs to the flying tower type of amusement facilities. The height and speed of the equipment bring different experiences to passengers. Passengers are restrained on the circular cockpit by a safety restraint device, and the cockpit is gradually raised under the hydraulic drive device, and when the cockpit reaches the maximum height, it descends rapidly, and after falling to the bottom, it slows down and then lifts again. While the cockpit is moving vertically, the tower of the entire device will drive the cockpit to rotate. Passengers can experience the fun of the device in the superimposed motion of vertical and rotation. The bottom of the cockpit and the four sides of the tower are equipped with rhythmic lighting effects, accompanied by explosive music, which is very popular among people.
Rotating Tower Ride Features
Mobile equipment, with its own enlarged steel structure foundation, no need for fixed foundation installation.
The cockpit can be rotated, and the range of viewing directions for passengers is wider.
Buffer auxiliary oil cylinder, multiple steel wire ropes, oil cylinder with built-in damping, constant pressure speed regulating valve, and four protections to ensure safe operation.
Double ratchet pressure levers, safety belts, electric feedback safety belts, and triple restraints ensure the safety of tourists.
The hydraulic system is compact and occupies a small area.
The descending speed is adjustable, the maximum descending speed is 4m/s.
Rotating Tower Ride Concept of design
The advantage of mobile equipment is that it greatly simplifies the work of installing the foundation. In the past, the jumping machine had a cockpit rotation, and the column did not rotate. The rotating power was provided by the trolley line, but in the case of high-speed operation, the trolley line The failure rate is relatively high, so we designed the cockpit to rotate by the tower column, avoiding the problem of the trolley line, improving the stability of the operation of the equipment, and also increasing the ornamental value of the equipment.
