Skee Ball Bowling Machine
Specification
- Votage: AC220V±10% 50Hz or AC 110V±10% 60Hz; (Note: As the actual voltage, please refer the label of the machine)
- Power: 125W
- Dimension: W765×D3112×H2110(mm）；
- Weight: 185KGS;
How to play
- Insert coins;
- The Coin throw into the Hole on the basket you can Win the Score;
- If the Coin Throw into Jackpot’Hole, You win the Jackpot;
- If the Coin Can not throw into the Hole, You win mercy ticket.
Package Contents
When opening the box of packaging, make sure that the following parts are supplied.
- Body Assembly: 1 unit
- Accessories:
|
No. |
Content | Specification | Q’ty | Illustration | Note |
|---|---|---|---|---|---|
| 1 | Power Card | 1 | |||
| 2 | Fuse | Φ5-20mm | 3 | 3A/250V(For 220V)
6A/125V(For 110V) |
|
| 3 |
Manual |
1 | |||
| 4 | Key | 3157 | 1 | MainBody | |
| 5 |
Key |
3172 |
1 |
CashBox |
|
| 6 |
Ball |
11 | 9for game, 2for spare | ||
| 7 |
Switch |
2 |

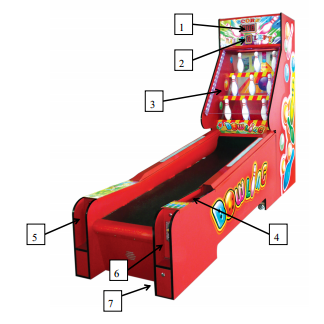

MAJOR COMPONENTS
1.Score Display；2.Balls Left；3.Target(Play Field)；4.Ball Truck；5.TicketDispenser;6.Coin Acceptor;7.Coin Box.
Play Zone

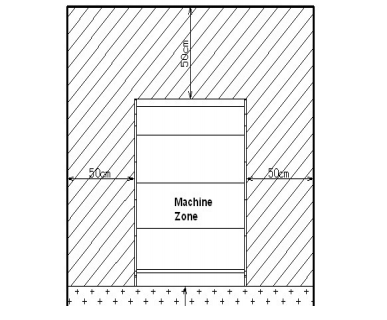

Space for Operation
This machine requires space for playing the game (play zone), and
for maintenance (Maintenance zone) as shown below.
Be sure to leave enough space when installing the machine.
Locations to avoid installing:
This machine is designed for indoor only. Never install this machine
outdoor or at any of the following:
- Locations exposed to direct sunlight.
- Locations subjected to rain or water leakage.
- Damp、dusty or hot places.
- Do not place close to a heat source.
Game leveling
Install this machine on a flat surface. Adjust the level adjustor to adjust the height of the machine and tighten them. (The casters are
raised approximately 5mm above the floor, casters should be able to rotate freely).
Make sure that the machine is level with the floor. If the machine is not level, the game may not be play well.
Movement and Transport
Turn off the power before moving this machine.
If the casters are not move, please change them.
Be careful not to damage the machine during transport.
Move、overturn and transport must accord with the request of the factory.
