Speed Forward Bicycle Arcade Game
Size of product
Single-machine parameters：
1、Operating Voltage: AC220~240V 50 / 60Hz
2、Power: standby 400W, peak 500W
3、Overall dimension: length 1.95 wide 0.85 height 2.2 (m)
4、Weight: approximately 150 ㎏
5、Number of games: 1 person
6、Number of coins: adjustable
7、Application range:amusement park、Family entertainment center、game center、shopping mall
1、Operating Voltage: AC220~240V 50 / 60Hz
2、Power: 2,000 W
3、Overall dimension: length 1.95 wide 3.60 height 2.2 (m)
6 Players Group Parameters:
1、Operating Voltage: AC220~240V 50 / 60Hz
2、Power: 3,000 W
3、Overall dimension: length 1.95 width 5.4 height 2.2 (m)
Product profile
1、Product features：
- The product is our latest product, andcovered by copyright.
- The product looks stylish and the lighting is eye-catching.
- Independent system with online playfunction, increase player stickiness；
- Combine bicycle and sports games, enjoy ride and play;
- Arc-shaped designwith flowing light, restore the real feeling of cycling;
- Multiple sensory experience, head up, pressure down and vibration, which bring more fun.

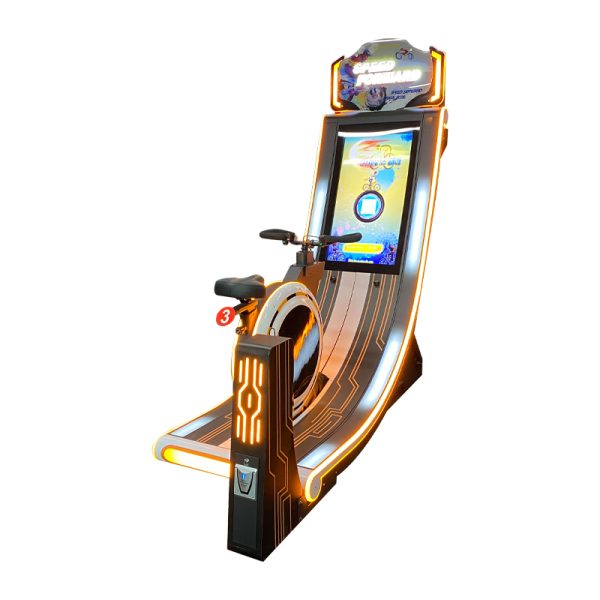

2、Product appearance:

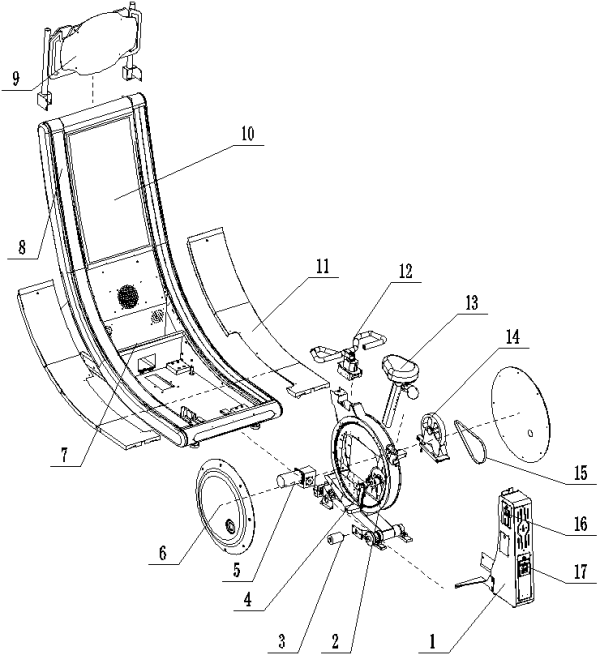

Product detail analysis:
Part name:
1、Coin box 2、Car cabinet
3、Shock motor 4、Pedal
5、Head up motor 6、Body cover
7、Cabinet 8、Waterfall light
9、Top light cabinet 10、Surface LCD screen
11、Case cover plate 12、Steering wheel
13、Seating washer 14、Damper
15、Damper drive belt 16、Coin acceptor
17、Lottery device

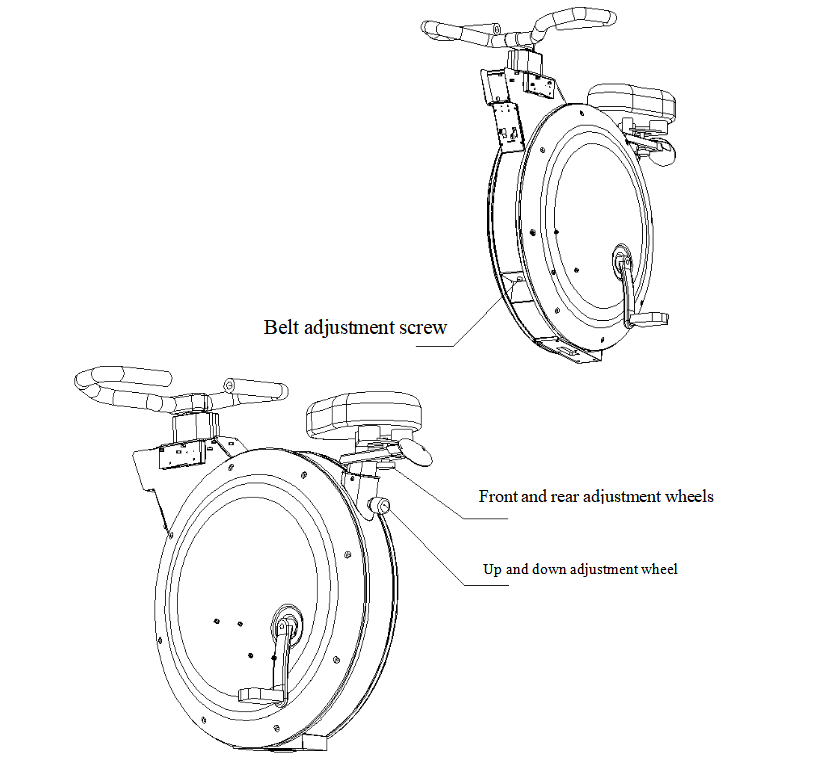

Description of the product’s local structure：
（1）Belt slip adjustment: when the belt is too loose, there will be tread slip, through the above (belt adjustment screw) on the belt tightness adjustment, to the screw lock direction adjustment will make the belt pull tighter and tighter, so as to solve the skid.(Note: When adjusting, it should not be adjusted too tight, otherwise the belt life will be shortened.）
（2）Seat adjustment: riding the world seat can be adjusted up and down, (upper and lower adjustment wheel) to pull out, can adjust the height of the seat; (front and rear adjustment wheel) lose the seat front and rear adjustment.
Game Functions：
1.Login game: it is more convenient to log in the game with wechat scan. Please press the front of the right button to enter the game
2.Choose the Character / Mode: Players choose the mode to play with the characters according to their preferences
3.Left and right keys：
A.Front left and right keys can select the mode, role, left key selection, game confirmation；
B.In the racing mode, there are two vacancies on the left and right sides of the nitrogen strip. When the nitrogen collection is full, a small rocket prop will randomly appear in the left and right positions, and press the left and right keys to use the corresponding position of the rocket to accelerate;；
C.In fun game mode players will collect random props, props will appear in the nitrogen bar around two positions, press the left and right keys to use the corresponding position of the item
4.Brake: the front position of the machine has the brake, using the right brake can get the deceleration effect, the rotation direction of the brake can get the drift effect
Photo description:

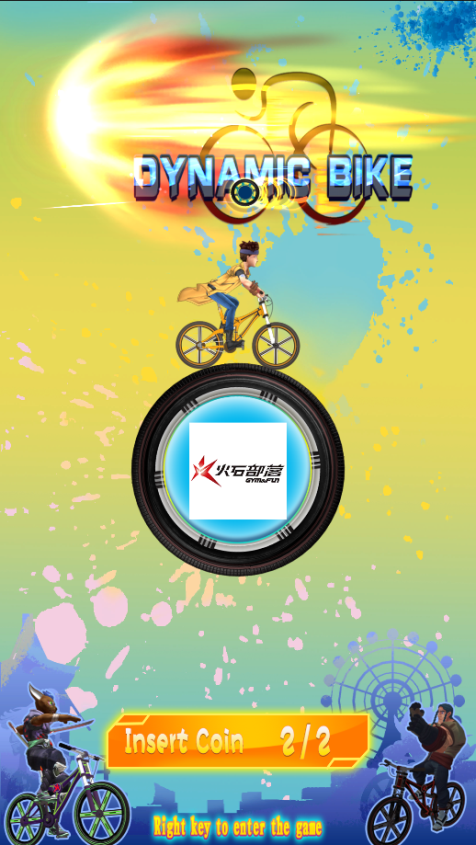

1、Game standby interface, scan wechat code to log in to the game, the steering wheel right button to enter the next round.

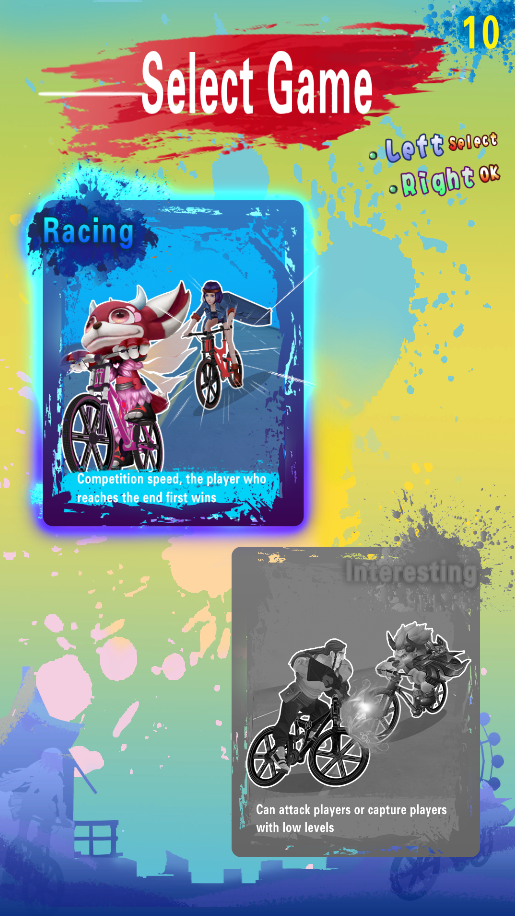

2、Mode selection: single-person mode, connection mode

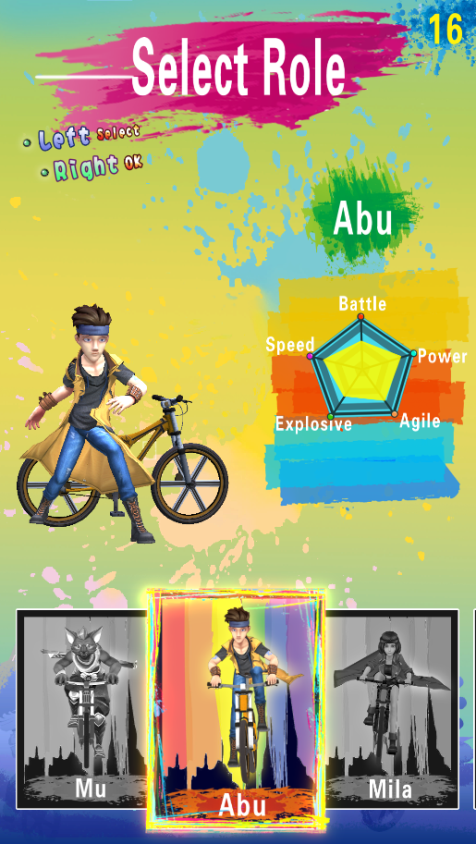

3、Choose characters: 8 IP characters can be selected

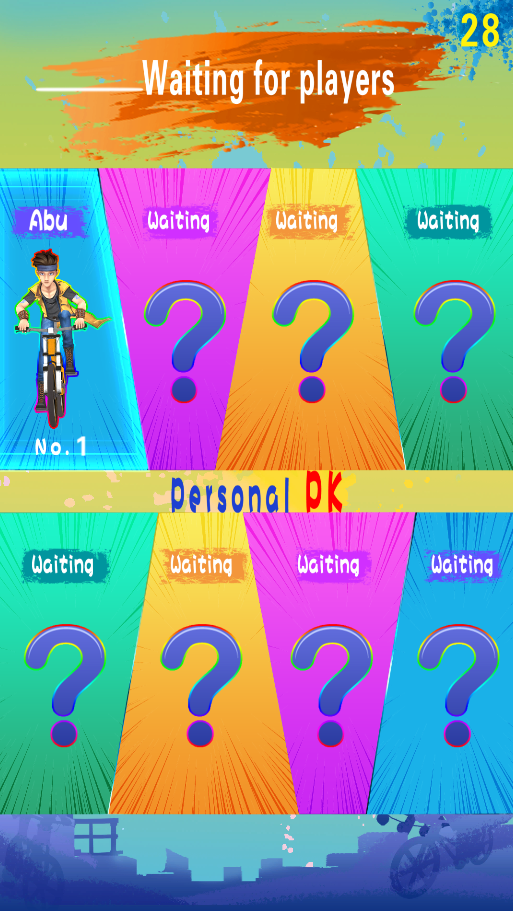

4.Waiting for the player to enter…

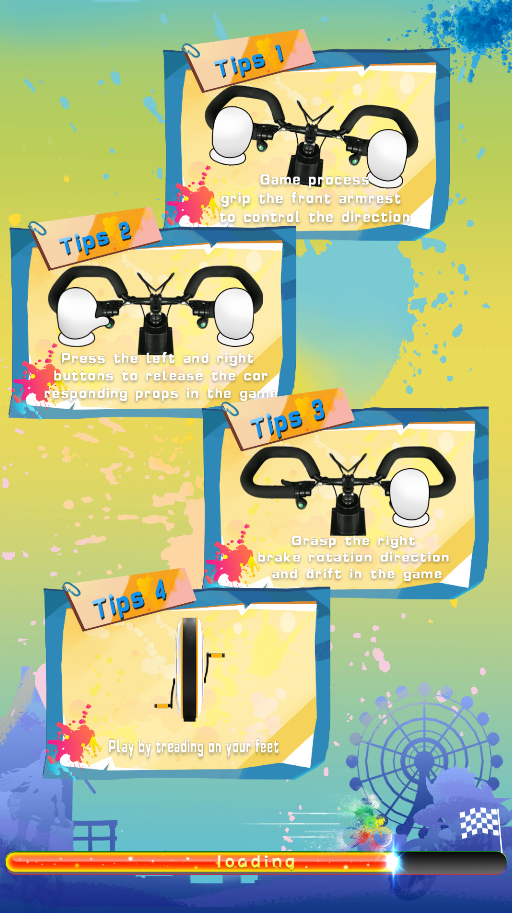

5、Gameplay tips: the front left and right swing control direction, step on the pedal forward, left and right button to release props.

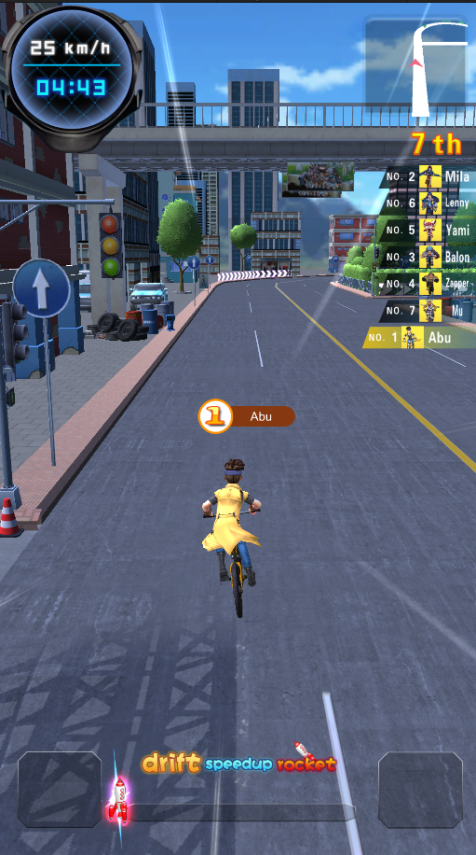

6、Game screen scene

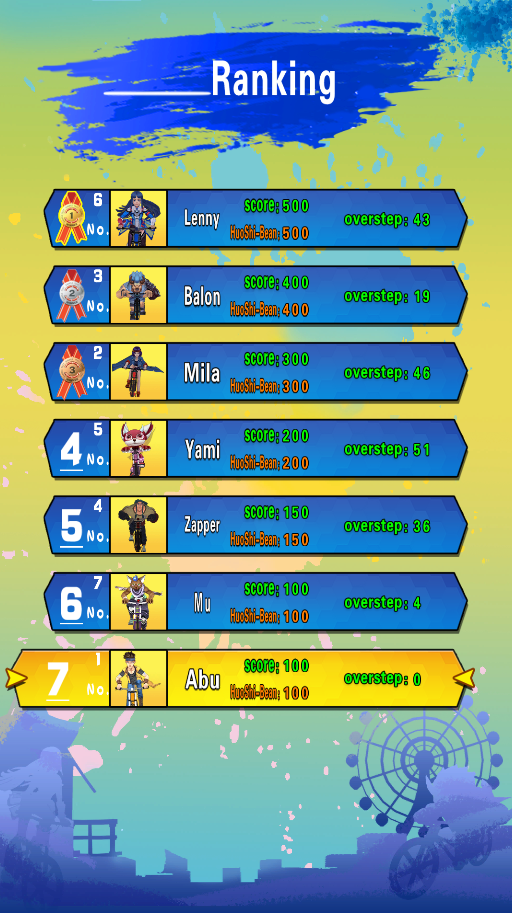

7、After the game is over, players are ranked.
Set up：

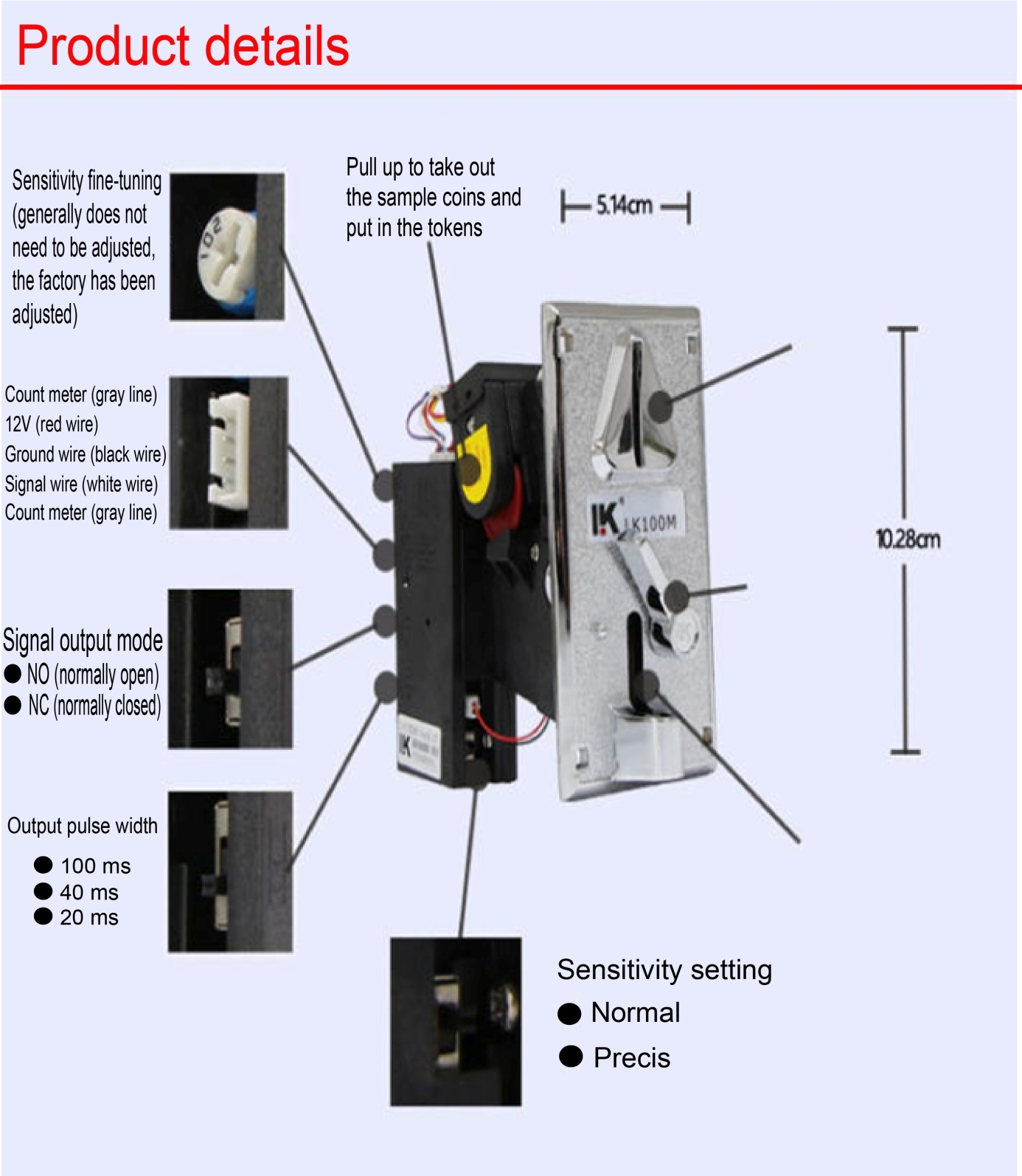

Coin acceptor setting
