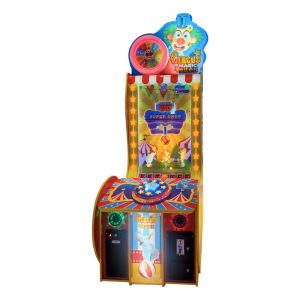

Magic Clown Ball Drop Arcade Games

Technical Parameter

  • Voltage: AC 220V/ 110V (50/60Hz)

  • Max / Min. Current: 1.3 A/ 1A (Note: Please refer to the nameplate located on the back of the games to check actual usage of voltage)

  • Max. Power: 150W

  • Standby Power: 120W

  • Coin Size: Diameter φ21mm ~ φ31mm// Thickness 1.2mm ~ 2.5mm

  • Capacity of Coin Box: Approximately 2,050 Coins ( for coin sizeφ25*1.5mm)

  • Location Required: 5 ~ 40℃, humidity is less than 90%. No contact with any corrosive liquid, no any greasiness and dirt.

  • Dimension:L1060mm*W850mm*H2650mm

  • Application range:amusement parkFamily entertainment center、game center、shopping mall

2022 Hot Selling Ball Drop Arcade games Made In China|Best Ball Drop Arcade Game For Sale

Volume Adjustment

  • Volume adjustment 1:

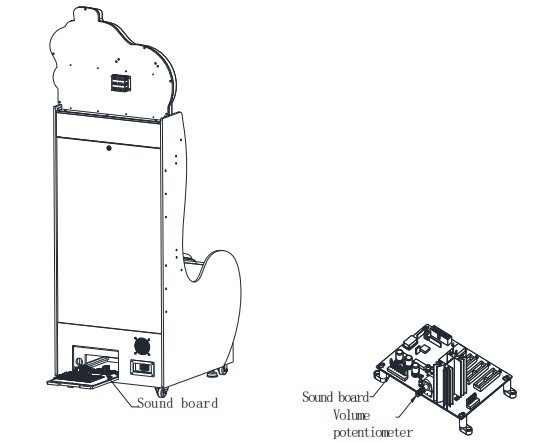

    • Open the repair door and find the volume potentiometer on sound board. Turn the potentiometer to adjust volume of machine. Turn it clockwise makes the volume larger and turn counterclockwise makes volume output smaller.

2022 Hot Selling Ball Drop Arcade games Made In China|Best Ball Drop Arcade Game For Sale

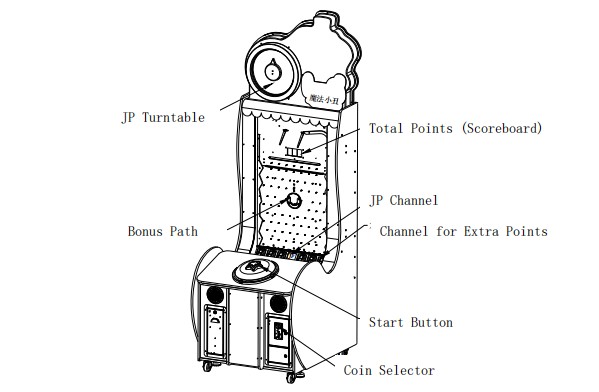

Play Tips & Operation:

Insert the coins, and press the start button to drop the balls.

  • 1 coin for 5 plays (original setting, the quantity for each coin can bereset), each time of pressing button, 1 ball would drop out.

  • When the ball drops through the bonus path: 1 time can get 3 extra bonus balls, twice for 5 extra bonus balls, 3 times for 8 extra bonus balls (original set as 8 extra bonus, can be set differently)

  • Point channels: The player can get the corresponding points shown on the channels (as below chart), the points can be set differently.

  • JP channel: During the game, when the ball drops through the JP channel, JP turntable will spin around, but during the spinning of the JP turntable, any ball dropping through the JP channel would be invalid. As the turntable stops spinning, if the pointer stops on a number (points), the gained points will be added directly into the total points; if the pointer stops on “X + Number(Multiple)”, it means the total points would be multiplied by the number.
