Raiders Of The Lost Ark Arcade Shooting Games Machine
Detail
| NAME | RAIDERS OF THE LOST ARK GUN SHOOTING 2P |
| Material | Metal/wooden cabinet/Acrylic/IC mainboard |
| Product | AMUSEMENT MACHINES |
| Power | 300W |
| Screen size | 32”gun shooting 2P, power:300W,weight:120kgs |
| PLAYERS | 2P |
| GAMES | 20 IN 1 |
| WIN | Capsule toys or tickets |
| Playing instruction | Raiders of the lost ark, is with 5 big kinds different game mixed,total with 18 games in 1. With IC high quality board to mix all players popular games inside. When insert token, players can select 5 big kinds of games, and then select the games levels to start, Players shoot the monsters within the limited time, to win tickets or capsules after game over. |

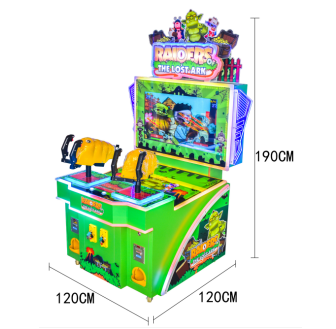

size :RAIDERS OF THE LOST ARK 32”GUN shooting 2P
Application range:amusement park、Family entertainment center、game center、shopping mall
Enter the Settings page

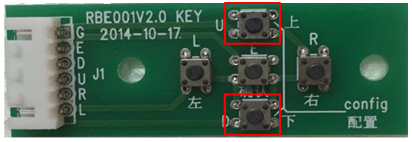

Under the standby screen and press the “up” and “down” to enter setting page at the same time(below red box).

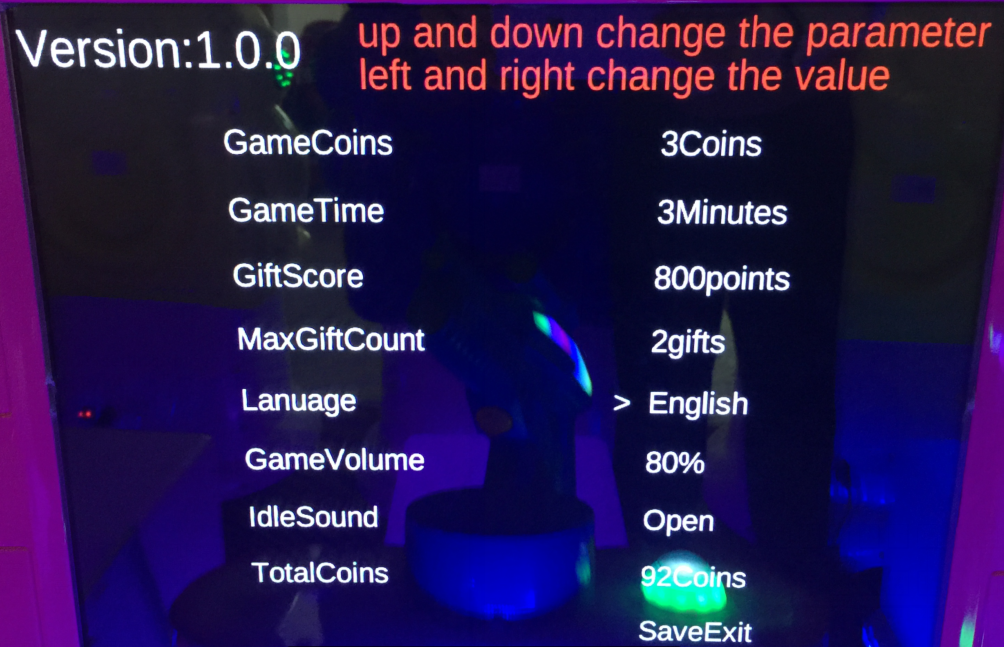

enter the setting page after，press the keys of “up”、“down”,use the keys of “left”and“right”to Change options.
After the completion of the setting, move the cursor to the “save exit” button, press the key of “ok ” to exit the set.
The calibration of gun
the first: With aim at the left edge of the screen, press the left key of potentiometer plate, then press the “ok”key,
the second:To aim at the right edge of the screen, press right key of the potentiometer plate , then to press the “ok” key,
use this method to calibrate up and down.
Troubleshooting
Automatic restart: check the 12 v peripherals (article lamp, etc.) if there is a short circuit, can be pulled out a peripheral connection to troubleshoot problems
Vibration electromagnet：After long time use will appear weak vibration situation, need to heat the butter is added in the electromagnet to lubrication.
insert coin automatically： check the swich of coin machine if had move to the option of “NO”
Other matters After long-term use, need to butter on two potentiometer gear.

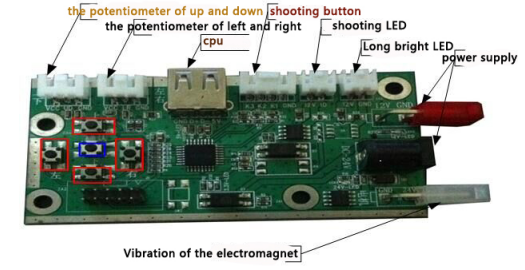

The connection of singel gun

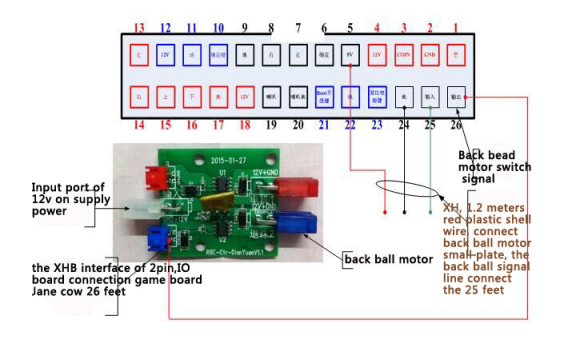

The foot bitmap of back ball machine
